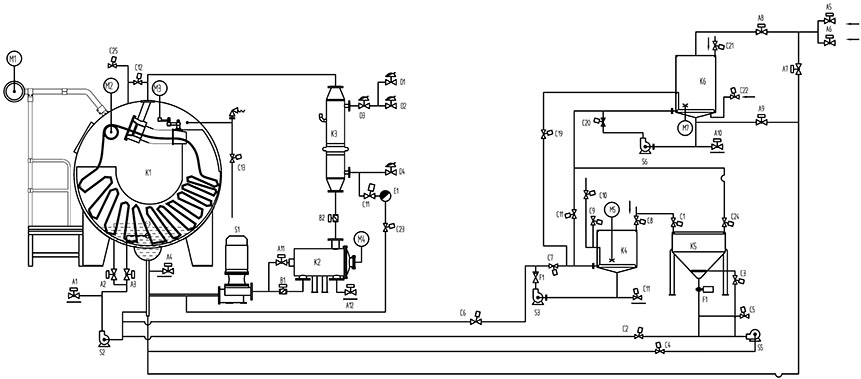

K1, Main Kier   K2, Filter    K3, Heat Exchanger   K4, Dosing Tank   K5, Salt Dosing Tank   K6, Storage Tank

S1, Main Pump   S2, Circulation Pump   S3, Dosing Pump   S5, Salt Dosing Pump   S6, STK Dosing Pump

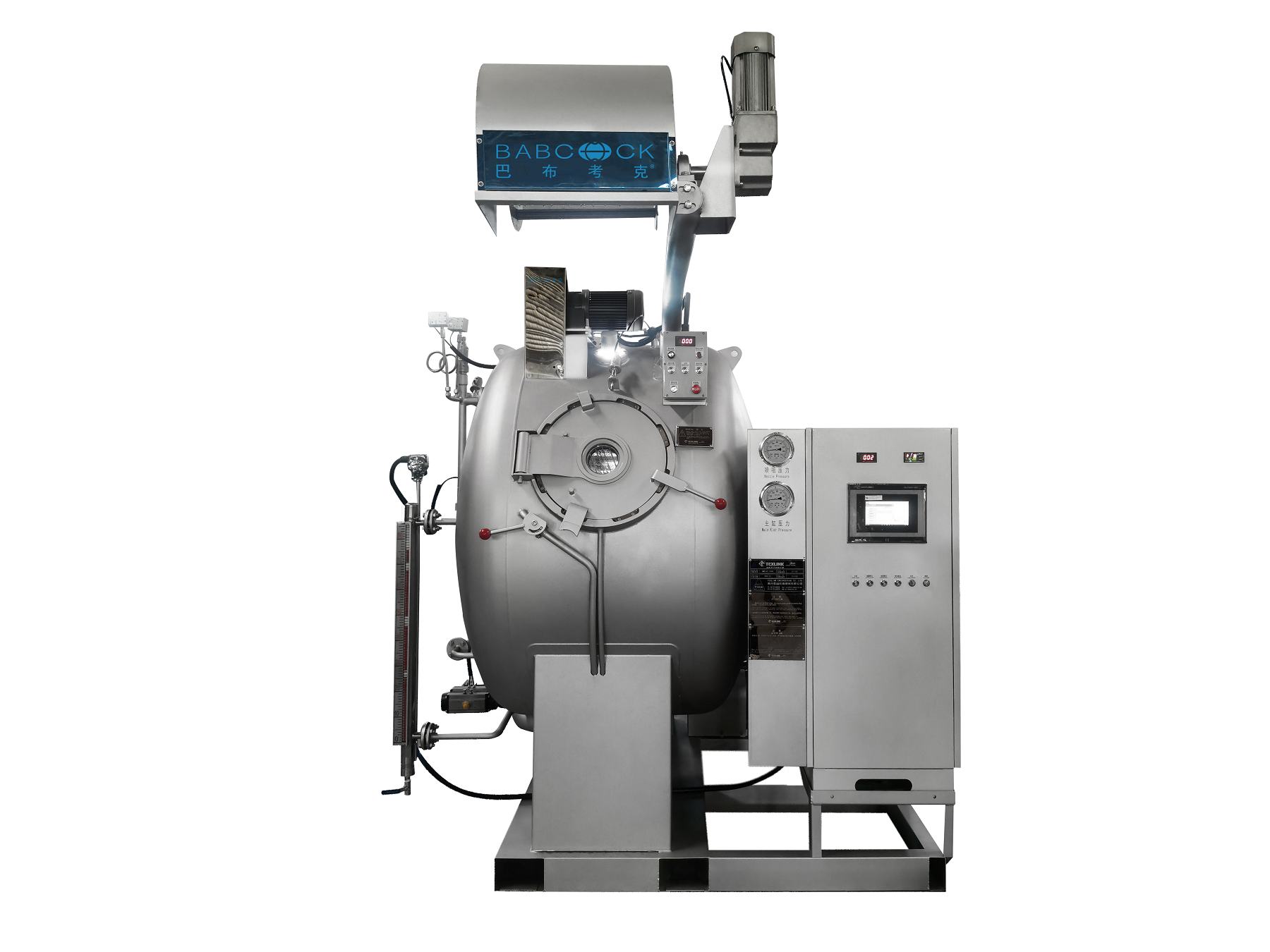

MWP suitable for cotton,cotton/man-made fiber blends,man-made fibers pre-treatment,dyeing and after-treatment of fabric in rope form,either tubular or open width,both in Atmospheric and High temperature according to procrss.

Type of Fabrics:Woven and Knitted

Capacity:10kg/tube~150kg/tube for single tube machine and from 20kgs/batch~300kgs for multi tube.

Since low liquor ratrio(below 1:4) bulk production becomes more and more popular in dyeing house,sample dyeing in the same Liquor ratio is necessary to obtain the accurate recipe,MINI WINBOX had applied all advanced even-flow dyeing machine design to fulfill the Low LR(1:4) sampling requirement.

TECHNICAL DATA

Liquor Ratio: 1:4-6

Max. speed: 150M/Min

Designed Temp: 140℃

Designed Pressure: 3.5Mbar

Heating Rate: 25℃-98℃,average 5℃ / min

Cooling Rate: 130℃-85℃,average 2.5℃ / min
